Framing Components

Framing Systems and Components

Starrco offers three framing systems each complete with their own benefits and advantages. All three systems come in multiple colors and are compatible with all Starrco panels & finishes. The framing systems consist of multiple types of extrusions: wire-studs, wall starts, corner posts, H-studs, window framing, floor track, and ceiling track.

Get a free quote

Wire-studs

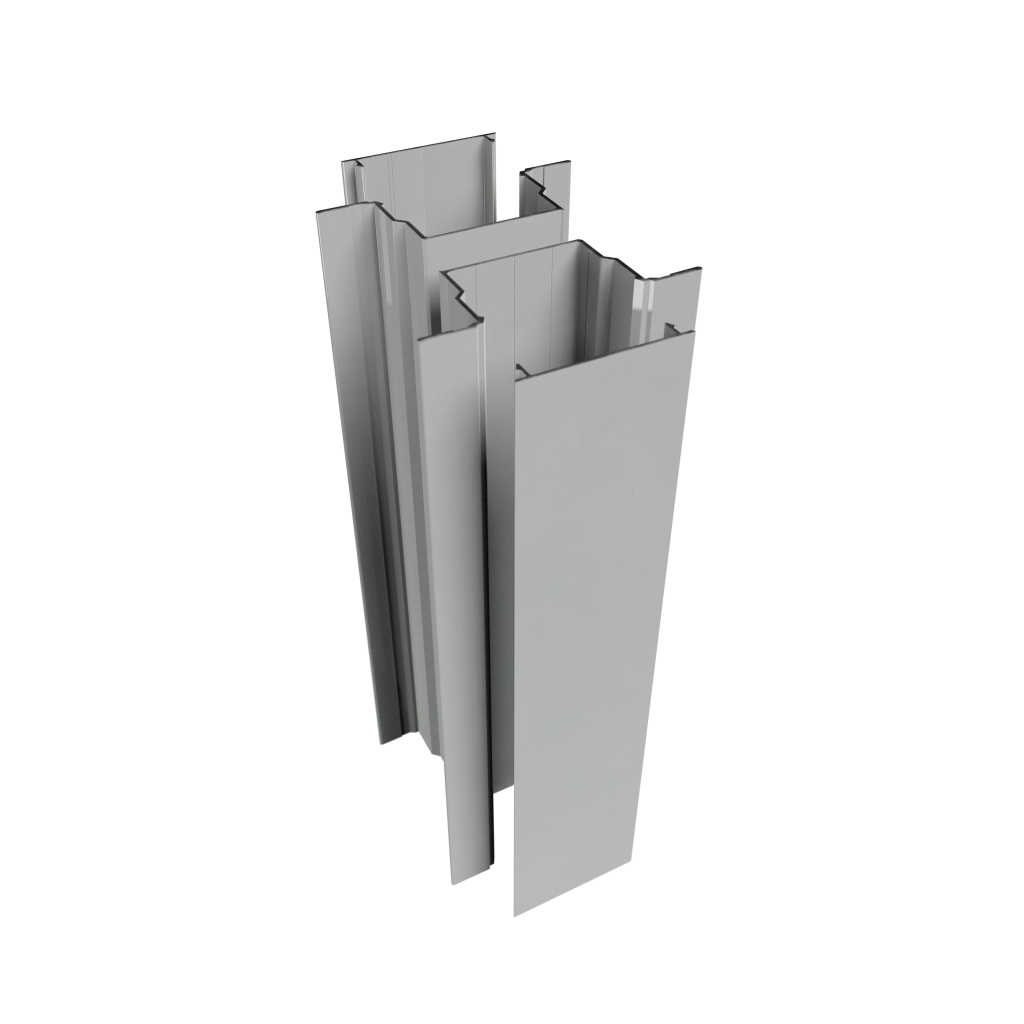

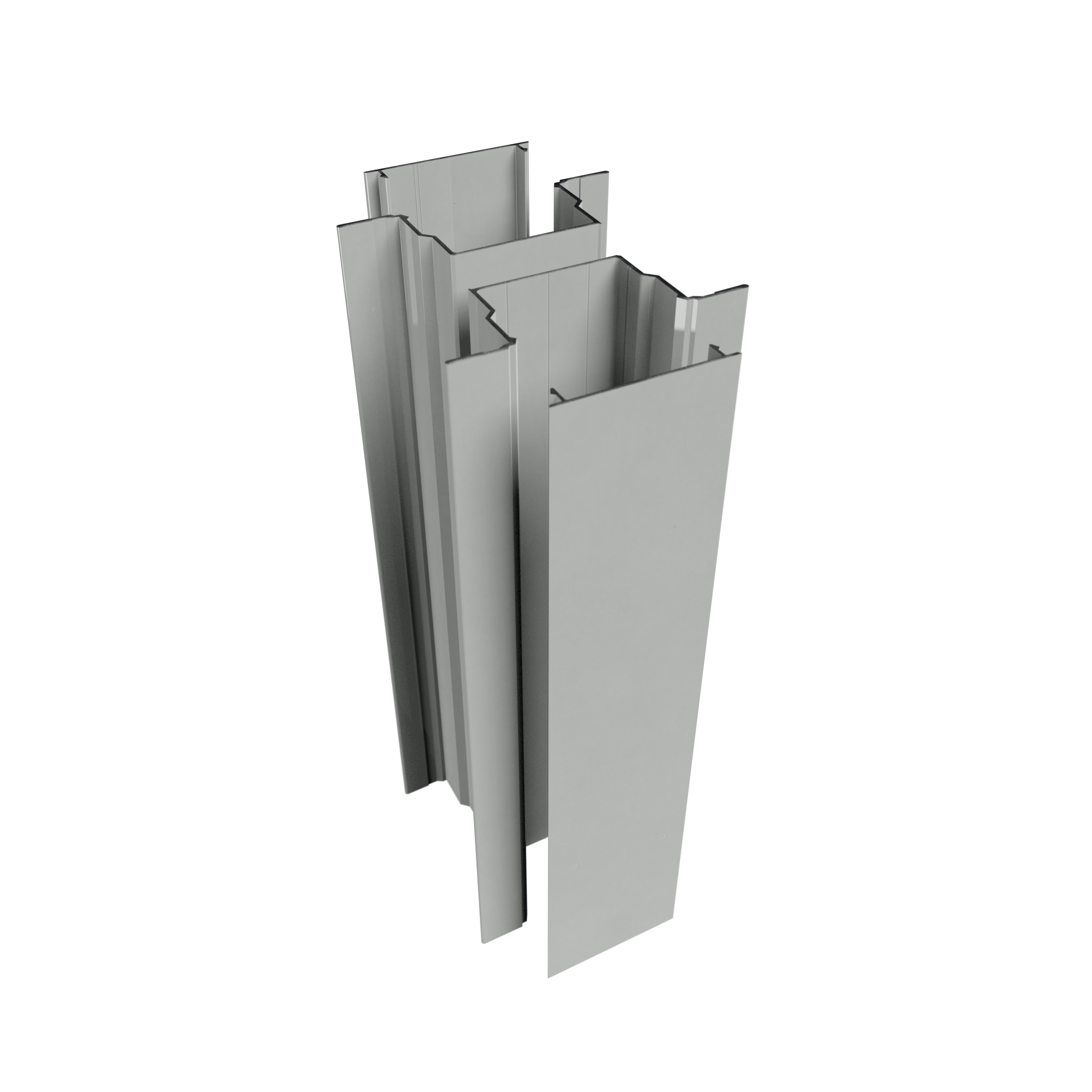

SS3000

  • 6063-T6 extruded aluminum
  • Four piece design allows for wiring on both sides
  • Removable cover plates on both sides
  • Wall height up to 13′ 3″
  • Designed for maintenance load
  • Resist horizontal load of #5 psf
  • Allows for removable wall panel without disturbing adjacent panels (non-progressive design)

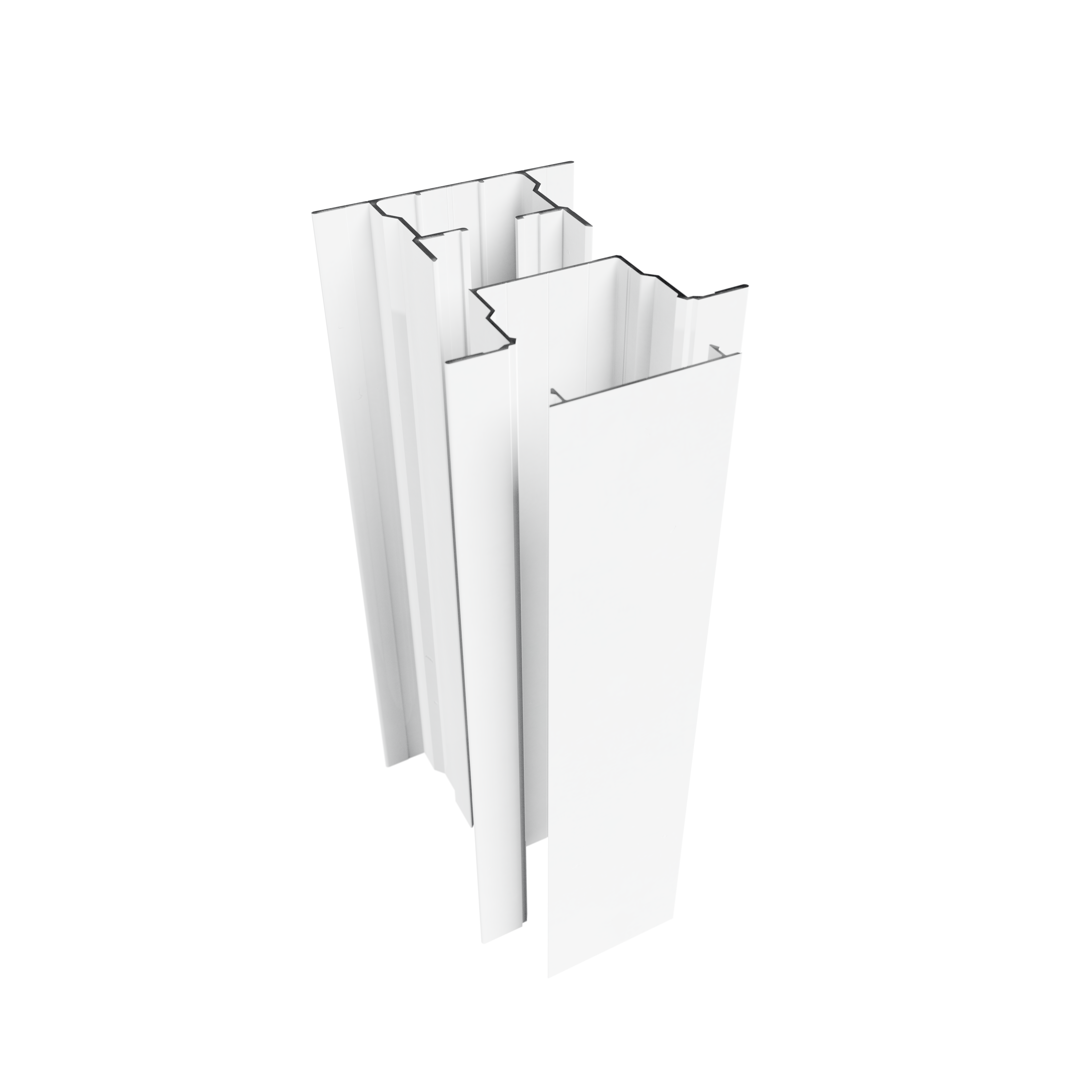

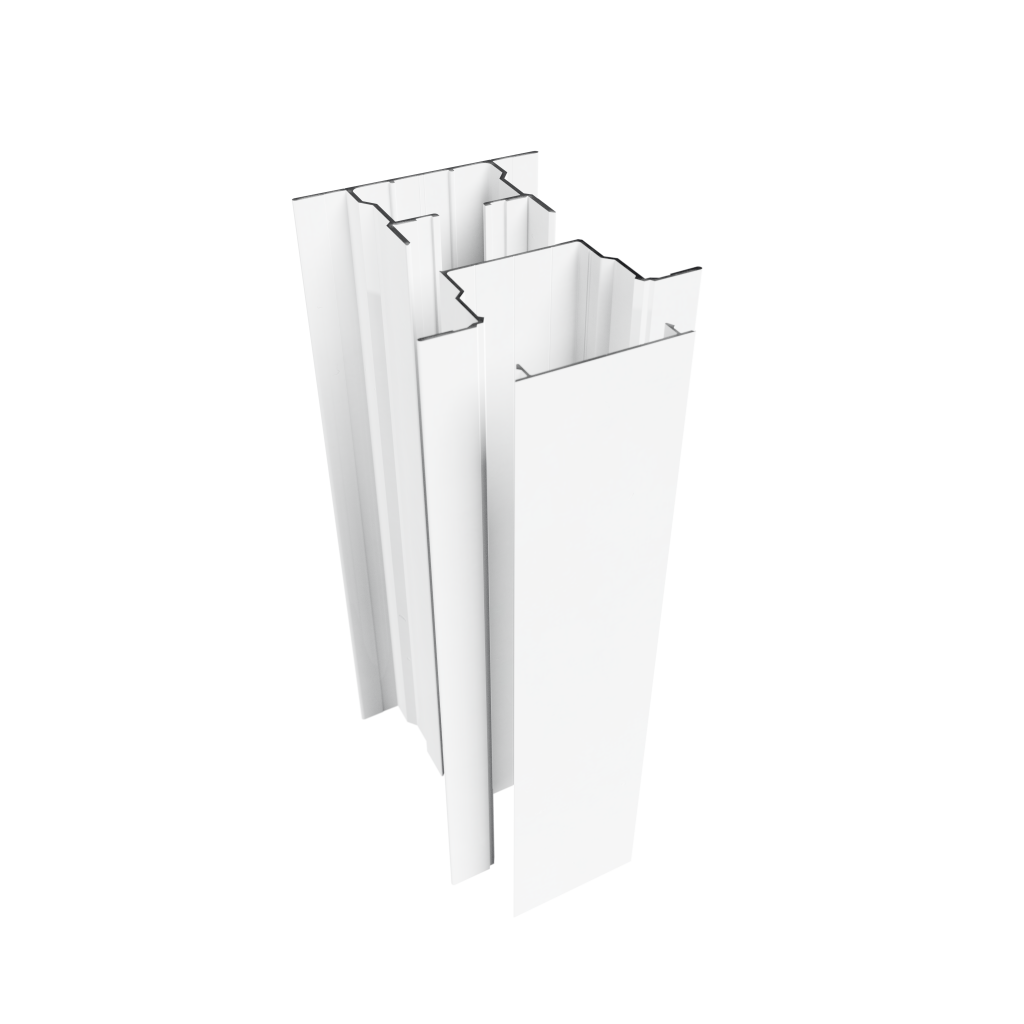

SS3500

  • 6063-T6 extruded aluminum
  • Three piece design allows for wiring on one side only
  • Removable cover plates
  • Wall height up to 15′
  • Designed for heavy storage loads
  • Resist horizontal load of #5 psf
  • Allows for removable wall panel without disturbing adjacent panels (non-progressive design)

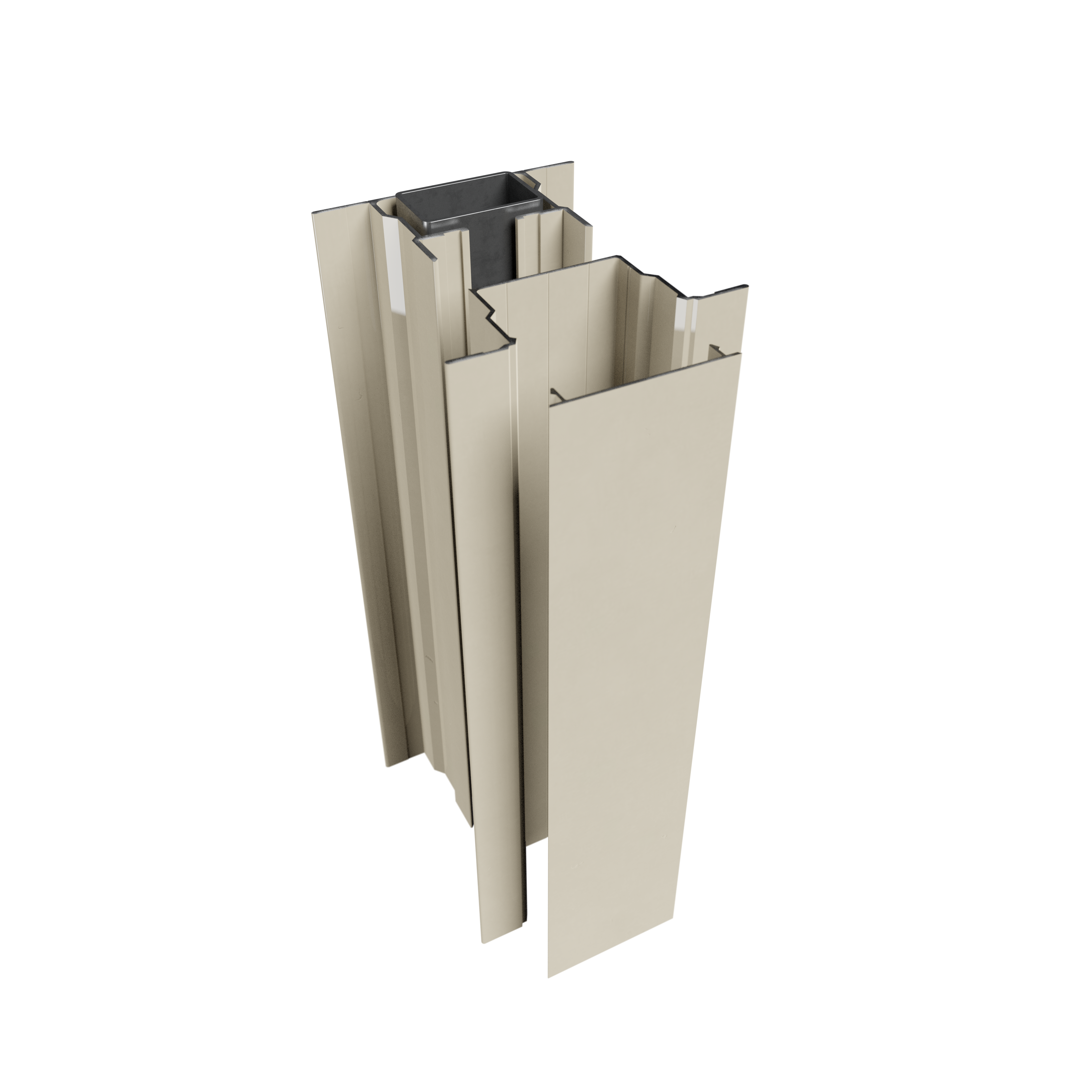

SS3500 with steel insert

  • 6063-T6 extruded aluminum
  • Three piece design allows for wiring on one side only
  • Removable cover plates
  • Wall height up to 17′
  • Steel insert increases wall height capabilities
  • Load bearing based on building span
  • Allows for removable wall panel without disturbing adjacent panels (non-progressive design)

Do you have a project in mind?

Jumpstart your facility with simple, solid preassembled buildings. Let us know what you’re looking for, and we’ll let you know how we can help.

Get a Free Quote

Framing System
  • Wire-studs – The piece that holds everything together and that sets Starrco apart.
  • Wall starts – Fastens to existing structure for non-freestanding applications.
  • Corner posts – Creates a 90 degree angle.
  • H-studs – Used to integrate doors into the Starrco framing system.
  • Window framing – Used to integrate windows into the Starrco framing system.
  • Floor track – Creates the layout of the structure.
  • Ceiling track – Acts as a ledge for corrugated roof decking – the lip conceals decking (available with or without lip).
